SMRU SRDL tag QC workflow

The first step to initiate any ArgosQC workflow is to construct a JSON config file (see SMRU_config_file).

The SMRU SRDL tag QC workflow has a number of data/metadata processing, model fitting, data file annotation and output steps. Each of these steps is encapsulated in an ArgosQC function:

Table 1. SMRU SRDL tag QC workflow functions listed in order of operation. For standard near real-time (NRT) QC workflows, these functions are implemented via the wrapper function, smru_qc(). For examples of how to implement the individual functions refer to the R help pages, e.g., type ?download_data in the R console.

SMRU QC function Description
download_data Downloads tag data .mdb file from SMRU server & writes to the specified data.dir.
smru_pull_tables Extracts tag data files from the downloaded .mdb file to a named list object in the R workspace, See ?smru_pull_tables for an example.
get_metadata Either loads deployment metadata from a CSV file specified in the config file setup block, or builds the metadata from the tag manufacturer’s data portal in combination with species and deployment site attributes provided in the config file meta block.
smru_prep_loc Prepares location data for SSM fitting by restructuring the SMRU diag & gps (if present) tag data files, truncating start and end dates (for NRT QC) based on dates of first & last CTD profile, projecting locations from lon-lat to the config file specified proj4string.
multi_filter Applies a 1st pass of the SSM model using parameters specified in the config file model block. SSM’s are fit in parallel across n available processors.
redo_multi_filter Applies a 2nd pass to refit the SSM to any tag location datasets that failed to converge on the first pass. Uses automatically revised parameters to help ensure convergence. Reroutes any locations off of land, if model:reroute:true in config file.
ssm_mark_gaps Identifies & marks SSM predicted & rerouted locations in track segments with data gaps of a specified minimum duration. Typically used in DM QC’s only.
smru_append_ssm Appends SMRU tag data files with SSM-derived coordinates & uncertainty (lon,lat,x,y, x.se, y.se) for each record.
smru_clean_diag Restructures the diag file for diagnostic plots
diagnostics Generates a map of all QC’d tracks & time-series plots of longitude & latitude for quick assessment of SSM fit to the tag location datasets.
smru_write_csv Combines QC-annotated tag data files across individual tags, applies tests for expected variables types and ranges (IMOS only for now), writes data files to CSV as final QC outputs

If a more complicated NRT workflow is required, e.g., with custom processing in between the standard workflow steps, the functions can be called separately from an R script so that intermediate results can be checked. This is also the recommended approach for all delayed-mode (supervised) QC workflows.

In this example, the main QC outputs were written to .CSV files in the specified output directory, output.dir. Each .CSV file includes the name of the SMRU data table, when present (ctd, diag, dive, haulout, summary) or the QC file (metadata, ssmoutputs). For QC workflows with ATN data, each of these file names is appended with the species’ AnimalAphiaID and the ADRProjectID. For IMOS and other programs, the file names are appended with the SMRU campaign ID (e.g., ct182).

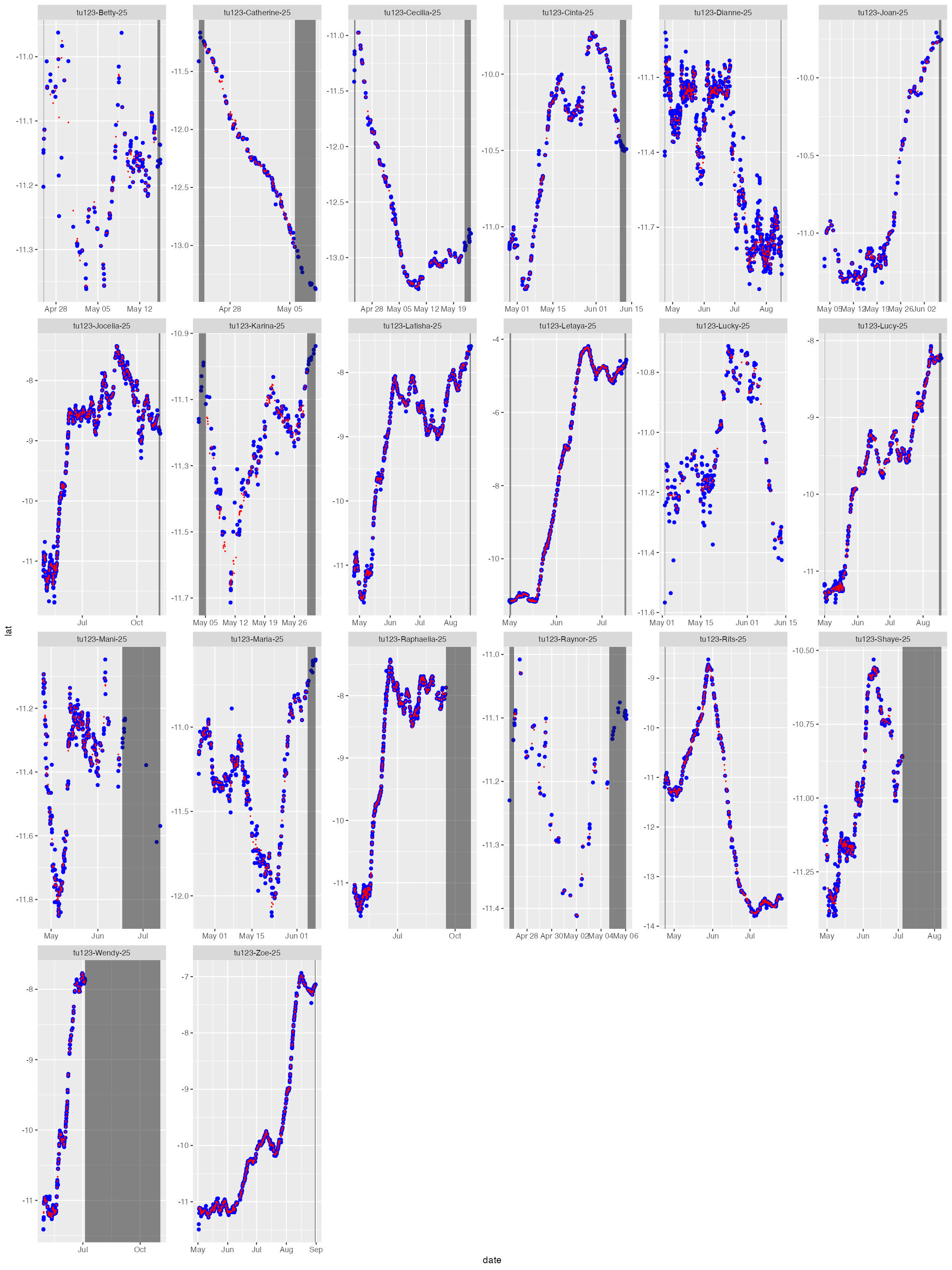

The diag files show the SSM fit (red) overlaid on the tag-measured Argos &/or GPS locations (blue). The dark grey vertical bars denote the time period tags were actively recording locations but the seal(s) either had not yet gone to sea (no recorded diving activity - left side), or the CTD sensor had failed (e.g., grey bar on right side of tu123-Catherine-25). By default, the QC model does not fit to data in these time periods. These plots help judge whether the SSM fits have artefacts that need addressing - typically only addressed during a delayed-mode QC workflow.

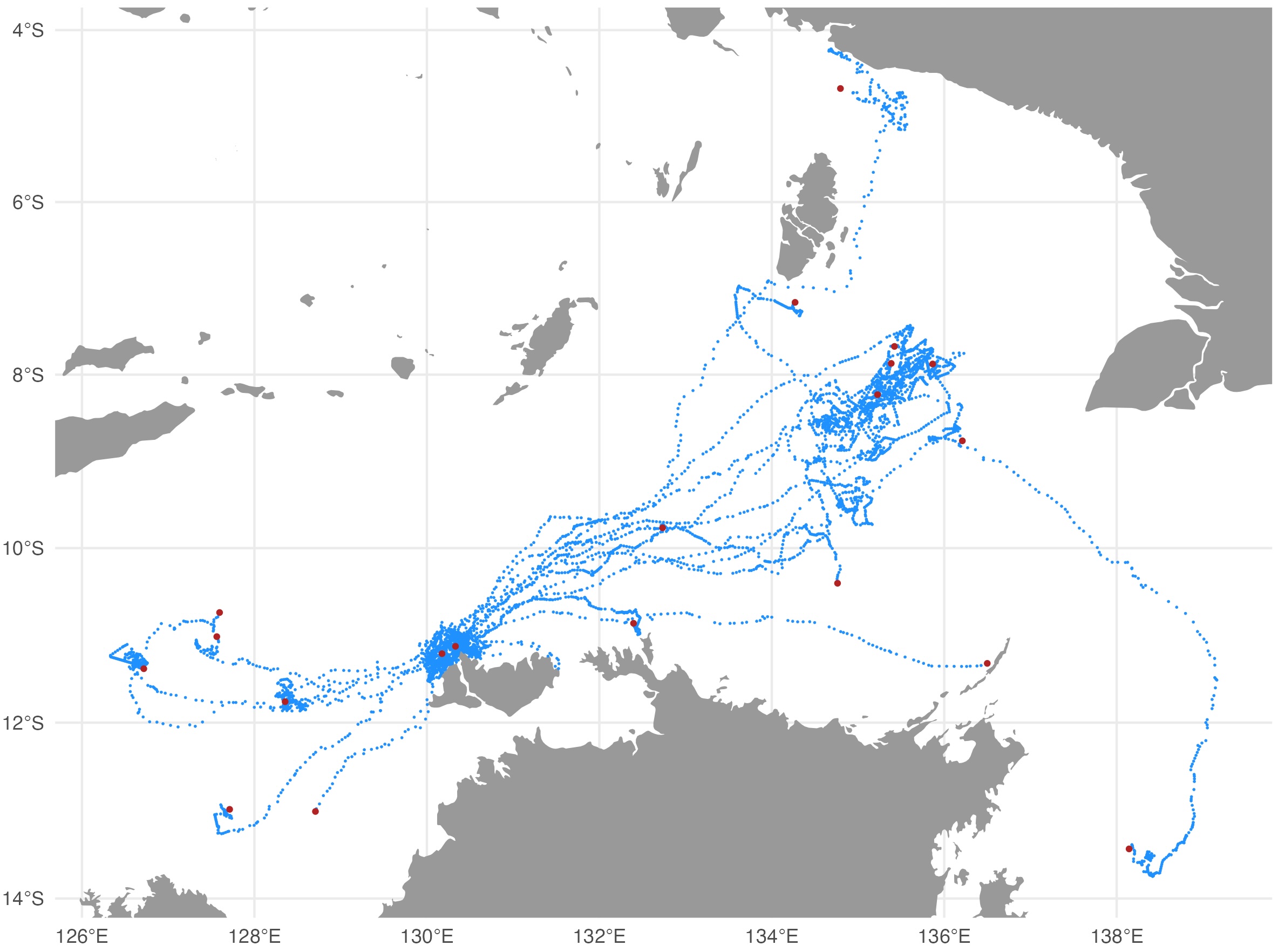

The map file shows the SSM-predicted tracks (blue) and current last estimated location (red) for each deployed tag. The map files are annotated by the QC date so they are not overwritten by successive QC runs.

Output .CSV files

The QC’s main outputs, the .CSV files contain all records from the original SMRU data tables and are appended with the following additional columns: ssm_lat, ssm_lon, ssm_x, ssm_y, ssm_x_se, ssm_y_se. These are the QC’d locations and their uncertainty estimates interpolated to the time of each record. The ssm_x, ssm_y variables are the coordinates from the QC workflow projection (in km) and ssm_x_se, ssm_y_se are the associated standard errors (in km). Note that NA’s may be present in the QC-appended location variables, particularly at the start and/or end of individual tracks. This is typically indicative of track portions prior to animals going to sea (at deployment start) and portions when either the CTD or pressure sensor failed, eg. due to biofouling or seawater ingress, but tag still transmitted locations (near deployment end).

Metadata .CSV file

If an input deployment/tag metadata file is provided then the output metadata file contains all the original metadata records plus the following variables describing the QC workflow applied to the data:

  • qc_start_date - the track datetime (UTC) at which the QC workflow was started.
  • qc_end_date - the track datetime (UTC) at which the QC workflow was ended.
  • qc_proj4string - the projection used for QC’ing the locations, as a proj4string.
  • qc_method - denotes the ArgosQC R package was used.
  • qc_version - denotes the version number of the ArgosQC R package used.
  • qc_run_date - the datetime (UTC) when the QC was applied to the data.

Note, these variables are not appended to the metadata for IMOS QC workflows due to IMOS - AODN metadata specifications.

SSMOutputs .CSV file
